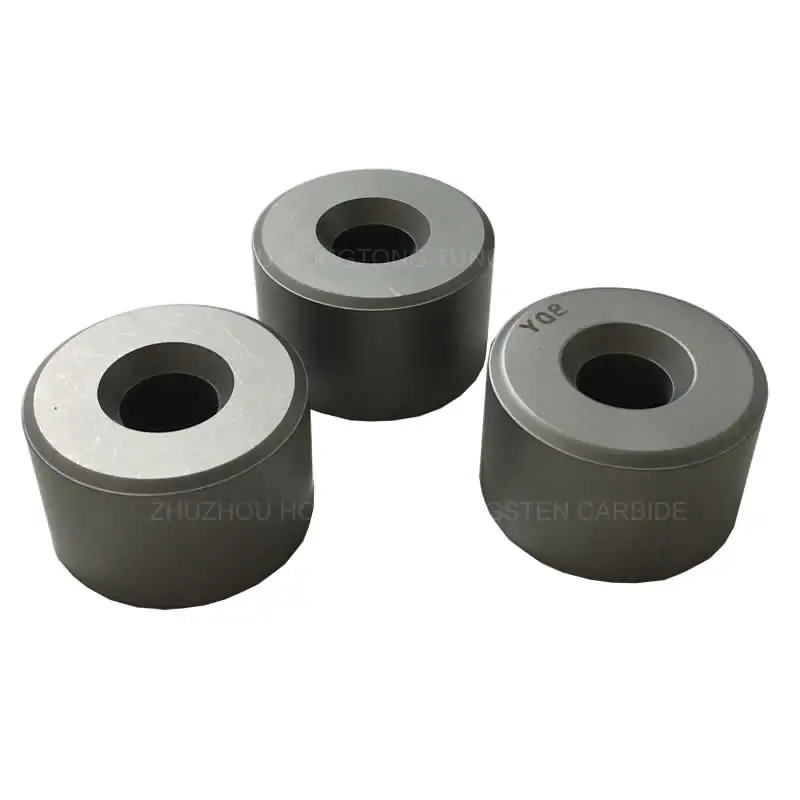

Copper Steel Conductor Wire Drawing Tungsten Carbide Extrusion Dies

FOB Reference Price:Get Latest Price
$48.00 - $58.00 / Kilogram | 5 Kilogram/Kilograms (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
HONG ZUAN
Model Number:
YG6,YG8
Shaping Mode:
Extrusion Mould
Product Material:
Copper
Product:
Vehicle Mould
application:
for cutting
Product Name:
Copper Steel Conductor Wire Drawing Tungsten Carbide Extrusion Dies
Material:
Tungsten Carbide
Certification:
ISO9001:2015
Size:
Customized Size
Keyword:
tungsten carbide Wire Drawing dies
Feature:
High Precision
Supply Ability
Supply Ability:
30 Ton/Tons per Month
Packaging & Delivery
Packaging Details
Packed according to customers' demand.
Port
Any port in china



Copper Steel Conductor Wire Drawing Tungsten Carbide Extrusion Dies



1. Material:100% virgin raw material with submicron grain size

2. Grade: Various grades for choice

3. Advanced production equipments and testing equipments

4. Precious Ground and polished

5. High wear resistance,high hardness and impact toughness

6. Advanced technology, automatic pressing, HIP sintering and precision grinding

7. Samples & small orders are acceptable.

Application:

1. Used for making high temperature parts, wear parts, anti-shielding parts and corrosion-resistant parts.

2. Used in making hardware and standard stamping moulds.

3. Applicable for electronic industry, motor rotor, stator, LED lead frame, EI silicon sheet and so on.

4. Used for producing drawn mold, wear-resistant parts, stamping parts and automatic press with punch.

5. Used for stamping die, extrusion die, stamping molds.

6. Drawing many kinds of steel wire, aluminum wire, high carbon, MS wire etc





Advantages of our tungsten carbide dies

1. tungsten carbide with high hardness, high wear resistance and high red hardness, at 550 ℃ still maintain more than 56HRC hardness;
2. Has a high modulus of elasticity, generally is (4 ~ 7) × 104kg / mm2, and excellent rigidity at room temperature;
3. Have a high compressive strengthwhich is greater than 6000MPa;
4. Have good resistance to oxidation and corrosion resistance, acid resistance, alkali resistance and high temperature not easily oxidized;
5. Has a low coefficient of thermal expansion, suitable for manufacturing high ,precision, sharp die.

Our size range of tungsten carbide drawing dies (such molds accounted for the vast majority of tungsten carbide die.) Cold heading, cold punching, forming and shaping dies

1. d:2----120mm available

2. D12----200mm available

3. H5----100mm available

Also your drawngs are warmly welcomed by our factory.

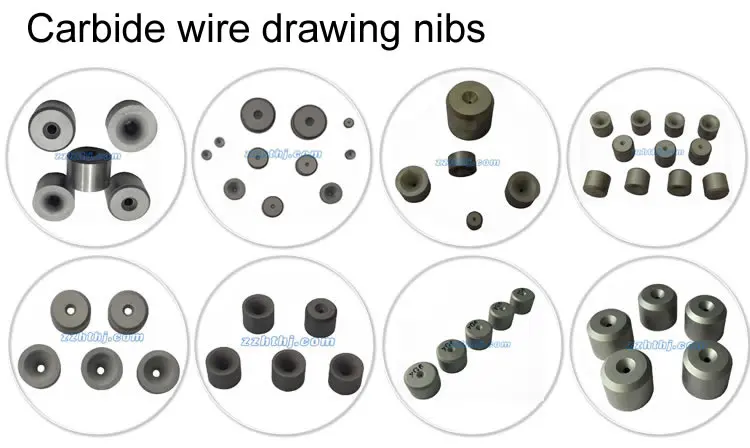

Carbide wire guide dies including
Tungsten carbide wire guides
Tungsten carbide bush
Carbide bunching and stranding dies
Tungsten carbide straightener dies



 50.jpg51.jpg1wire drawing die.jpg.jpg

Main Grade for Copper Steel Conductor Wire Drawing Tungsten Carbide Extrusion Dies



Grade No.

Density

(g/cm3)

HRA

T.R.S

(Mpa)

Application

YG3X

14.9

≥91.5

≥1300

For drawing non-ferrous metal wire and stainless steel wire etc.

YG6

14.8

≥90.0

≥2150

For drawing steel wire and stainless steel wire etc.

YG6X

14.8

≥92.0

≥1860

For drawing nonferrous metal wire, steel wire, stainless steel wire. Good wear resistance and high toughness..

YG8

14.8

≥89.5

≥2320

For drawing steel wire, stainless steel wire. Good general performance.

YG11

14.4

≥88.5

≥2420

For fabricating drawing dies of steel tubes and rods under high compressibility ratio; punching, stamping, forging tools under large stress.





Main product

Our Main products include : Carbide ball and seat, Carbide plates for agriculture wear parts, Carbide gipper, Strips, Bushings, Seals ring, Brazed tips, Nozzles, End Mills & Drill Bits, CNC inserts, Rotary Burrs, Grits, Customized carbide cutter: Woodworking tool cutter, V-cutter, mining tool,  Any customized carbide products are acceptable.
